Bottle Filling and Filtration
Ecolmaster Professional 4 Head Vacuum Filling Machine
Enolmaster is a professional semi-automatic filling machine. Due to its size and stainless steel frame, it is the perfect machine for brewers, edible oil producers, cellars, and wine-producers. Fills up to four bottles at once in just a matter of seconds.
Enolmaster operates according to the same principles as Enolmatic. It uses a vacuum pump to draw liquid from the tank into the bottles. You can adjust the maximum fill-level, which will stay fixed throughout the fill process once set. The tank from which the liquid is drawn can be placed up to 4 meters below the filling machine.
Features
- Fills Up To 600 Bottles Per Hour
- No Drip System
- Bottle Height Up To 350 mm
- Frame** And Filling Nozzels In S316 Stainless Steel Material
- Reliable And Hygienic
- Simple To Use And Easy To Clean
Technical Data:
- Dimensions: 650 x 460 x 450 mm
- Power: 120 W 220 V - 50/60Hz 100/110 V - 50/60H
- Weight: 25 kg
- Inner Diameter of the bottle neck: 16 - 28 mm
- Bottle Height: 180 - 350 mm
Specifications:
Data Sheet
- Type Of Equipment Filling
Dimensions (Incl. Packaging)
- Width 45.00 cm
- Height 65.00 cm
- Length 46.00 cm
- Weight 25.00 kg
Using our bottling plant in conjunction with traditional swing-top bottles results in a quick and easy process without any unnecessary capping equipment. Ultimately, this saves you time and money. For customers who prefer to use screw tops instead, we offer an alternative option.
Commercial & Home Water Filtration Solutions
To ensure your Everpure filter cartridge continues to provide the highest quality water throughout the year, we recommend replacing it when water flow appears diminished or when the system’s “rated capacity” is reached. All Everpure residential systems and cartridges include a Time strip filter monitor to remind you when it’s time to replace the cartridge.
aQuaproteQ
Meet the aQuaproteQ, with high quality materials and advanced technologies. This gatekeeper offers total protection and meets all legal approvals and requirements for drinking water. The system is compact but complete and meets the highest European standards for drinking water treatment. With automatic integrity checks and remote monitoring capability, the AQuaproteQ offers safety and convenience.
- The most complete & compact gatekeeper system
- Safety through automatic integrity checks
- Remote monitoring, readable from any location
Ultrafiltration
Ultrafiltration is a highly effective process that successfully eliminates a wide range of contaminants, impurities, and bacteria to provide clean and safe drinking water. At our company, we believe in delivering the best quality solutions to our customers, and our partnership with PB International guarantees just that.
We offer a range of standard and customized UF modules with diverse membrane technologies that cater to every specific need and requirement. PB’s cutting-edge systems and technologies ensure that we consistently provide our customers with the highest quality water possible. You can rely on us to deliver the most advanced and reliable ultrafiltration solutions that are available in the market today.
So, whether you are looking for an ultrafiltration system to be installed at home, or if you need a large-scale system for commercial or industrial purposes, we have got you covered. Our team of experts is dedicated to providing you with unparalleled customer service and support, from the initial consultation through to the installation and maintenance of your system. Choose us for all your ultrafiltration needs and experience the convenience of having safe, clean, and pure drinking water at your fingertips!
What is Ultra -Filtration?
Ultrafiltration functions similarly to the kidneys by using specially-developed membranes from kidney dialysis. It filters out harmful substances and waste products from the blood, allowing it to be separated from the urine. Ultrafiltration is commonly used as a separation technique.
Ultrafiltration uses a membrane to filter various suspended particles from a liquid. When purifying wastewater, drinking water or process water, a membrane is used to remove contaminants from the water.
The membrane used by PB has a pore size of 0.02 microns. When a liquid passes through this membrane, it will trap any substances, particles or bacteria larger than 0.02 microns. As a result, the liquid that passes through the membrane is a clean liquid, free of bacteria or viruses.
The benefits of ultrafiltration
Ultrafiltration filters out all dirt particles, bacteria and viruses, reducing biofilm growth. The end product of ultrafiltration is a clean and safe liquid. Ultrafiltration has a number of advantages:
- The filtering action of ultrafiltration is always active, regardless of the power supply and disposables. Ultrafiltration is therefore a highly effective and sustainable method of water filtration.
- An ultrafiltration water treatment system is very maintenance friendly. PB’s Gatekeepers also include an automatic integrity test. Every 24 hours, our Gatekeeper systems check for membrane ruptures. If a rupture occurs, the filter module automatically shuts down, leaving you with no risk.
- Ultrafiltration has a wide range of applications, from Legionella prevention in drinking water, to waste water treatment, rainwater and surface water.
- Excellent to combine with other techniques such as reverse osmosis and nanofiltration, for example as a pre-treatment.
- Relatively inexpensive to purchase and low maintenance costs.
Ultrafiltration features
PB International produces a wide range of standard and customised ultrafiltration (UF) modules using membrane technology. This technology is available in various versions with different characteristics in polymer material, pore size and flow directions. The multibore (inside-out) Poly Ether Sulfone (PES) membrane of 0.02 μm and MWCO of 11-150 kDa is widely used for this purpose.
PB uses a membrane with a nominal pore size of 0.02 microns for ultrafiltration. This type can be used as a separation method when particles with a pore size larger than 0.02 microns need to be removed from (drinking) water.

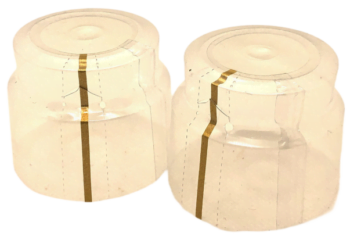

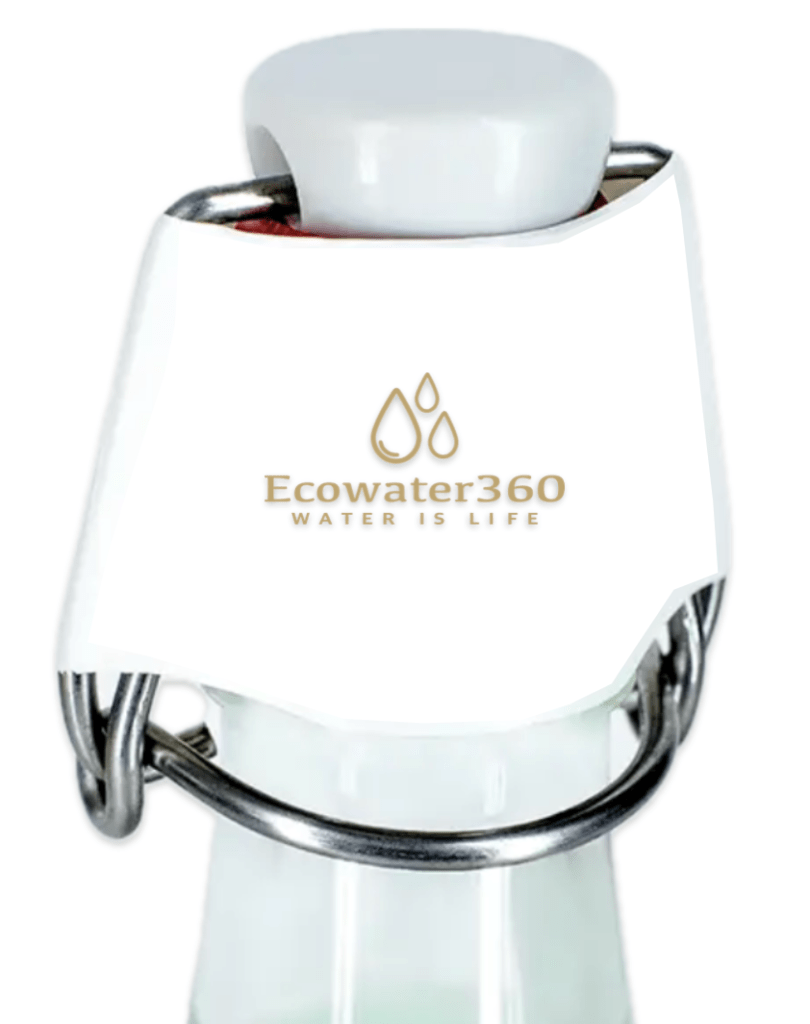

Tamper Proof Solutions after Bottling!
We provide hotels with safe drinking water that meets high quality standards. Our water is regularly tested and is free from harmful contaminants. We use tamper-evident seals on unopened complimentary beverages to ensure the safety of our drinking water and to minimize waste. Our unique and sustainable eco-friendly solution involves using plant-based biodegradable bands to reduce plastic waste without the need for heat or machinery. We are committed to protecting the environment and have implemented new processes in our bottling workflow to prioritize guests’ needs while staying mindful of sustainability.
These are hand applied and shrink by themselves at room temperature by up to 40% of their original size forming a tight seal that protects against contamination and counterfeiting. We offer a range of colors, from standard transparent, white, and black to customized options that match your branding. You can even add your logo or custom wording in a single color print. The bands can also be one colour printed with your logo or wording of your choice.
